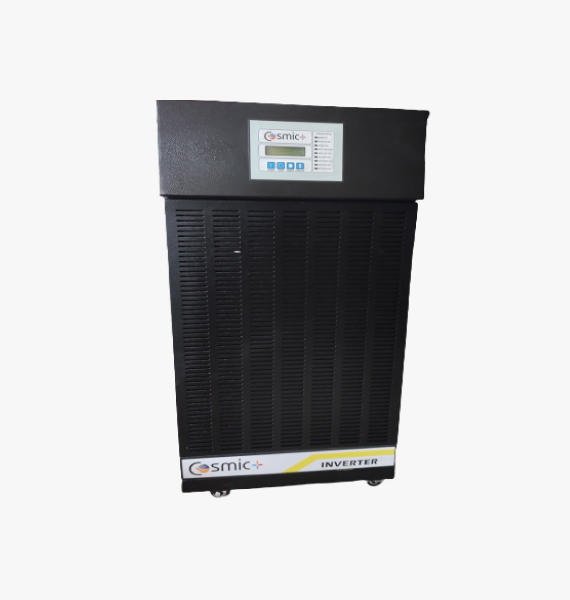

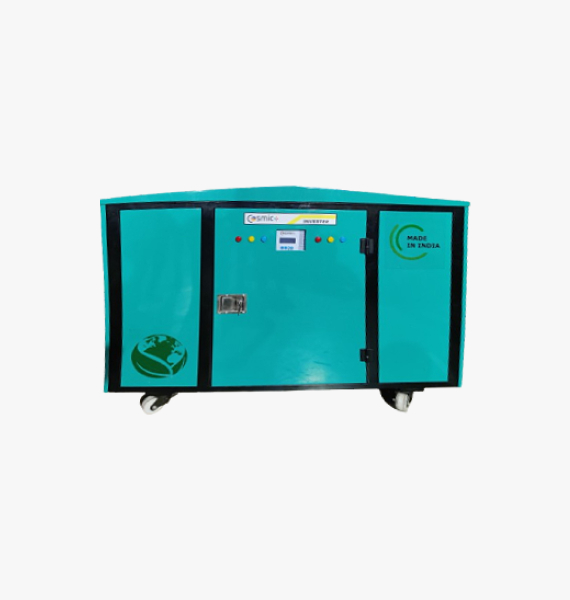

Three phase Inverter
Inverters are playing critical role in the Electrical system and widely used for the multiple application. Inverters are used to convert DC power to AC power. The DC power is generated by a sources like Battery, Solar Panel, Wind turbine etc. Inverters are used in Domestic, Commercial as well as Industrial applications. Mainly based on output power Inverters are classified in three main categories i.e. Pure Sine wave, square wave, Modified Sine wave.
- Residential Flats & bungalows
- Commercial units
- Lift/Elevators & Escalators
- Research Laboratories
- Financial & Educational Institute
Technical Specification
| Make | COSMIC+® | ||
| Model No. | MS+301LI | ||
| Input Phase | 3 phase + N + E | ||
| Rating in KVA | 10 KVA to 100 KVA | ||
| Rated Input voltage | 415 V ± 10%, AC Single Phase | ||
| Input Frequency | 50/60 Hz | ||
| Output Phase | 3 phase + N + E | ||
| Rated output voltage | 380 / 400 / 415V ± 1%, AC Three Phase | ||
| Output voltage regulation from no-load to full load | ± 1% | ||
| Frequency stability | 50Hz ± 0.1Hz | ||
| Transient response time | Around 40msec | ||
| Inverter efficiency | > 93 % | ||
| Overload time (without bypass) in Sec. for | 110% for 5 mins & 150% for 60 Sec | ||
| Output wave form | PWM Sine wave | ||
| Total Harmonic distortion for | Less than 3% | ||
| Crest factor | 3:1 | ||
| Phase displacement | 120º ± 1º | ||
| Output Power factor | 0.8 | ||
| Technology | DSP based, IGBT Switching Double conversion | ||
| Transformer insulation | Inbuilt Copper/Aluminium Isolation transformer | ||
| Type of metering | LCD / Digital type / LED | ||
| Cooling method | Fan cooling | ||
| Cable entry (Incoming & Outgoing) | Bottom Rear side | ||
| Colour shade | Powder Coating – Black / Gray Met finish | ||
| Degree of protection for panel Enclosure | IP 20 | ||
| Audible noise at 1 mtr. Distance | Less than 50 dB | ||
| DC Bus voltage | 360 VDC / 384 VDC | ||
| Type of battery | Tubular or Inverter battery | ||
| Voltage rating & No. of batteries | 12 V & 30 Nos. / 32 nos. | ||
| Recharge time up to 100% capacity | 12 hours | ||
| Make of the Batteries | Exide / Amaron or equivalent | ||
| Type of Bypass | Without bypass switch | ||
| Digital Display | |||
| R, Y, B Input and Output Voltages, Output currents & Frequency, DC Voltage, Battery and Load Percentage and All Faults | |||
| Protection | |||
| Output Overload & Short circuit, Output Under & Overvoltage, DC Under & Overvoltage, Mains Under & Overvoltage, Mains Single Phasing. | |||
| Site Conditions | |||
| Maximum ambient temperature | 40° C | ||
| Minimum ambient temperature | 5° C | ||
| Design temperature | 40° C | ||
| Humidity | 95% RH | ||
| Altitude | Less than 1000m above mean sea level | ||
| Type of Earthing | Solid Chemical earthing required | ||
